Templates

Introduction

Templates allow you to create customized designs and documents using raw data. We have a prebuilt range of templates that will allow you to quickly create Statements / Payment Receipts / Payment Refund Receipts and Delivery Notes, but the functionality does not stop there.

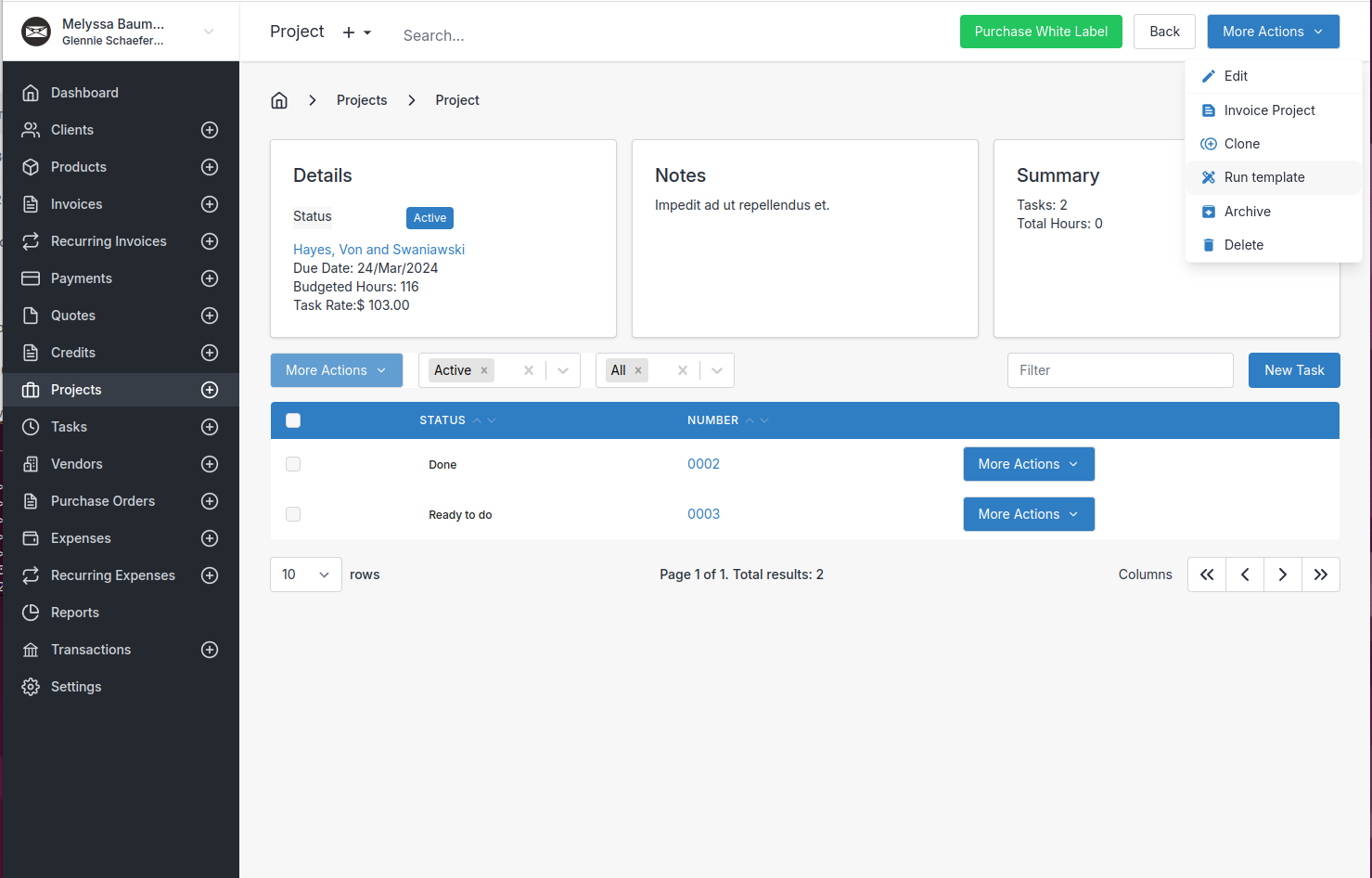

You can also run a templates against any entity within the application and have a PDF returned the the entities dataset embedded in. Here is an example of a template which has been produced from a Project:

alt text

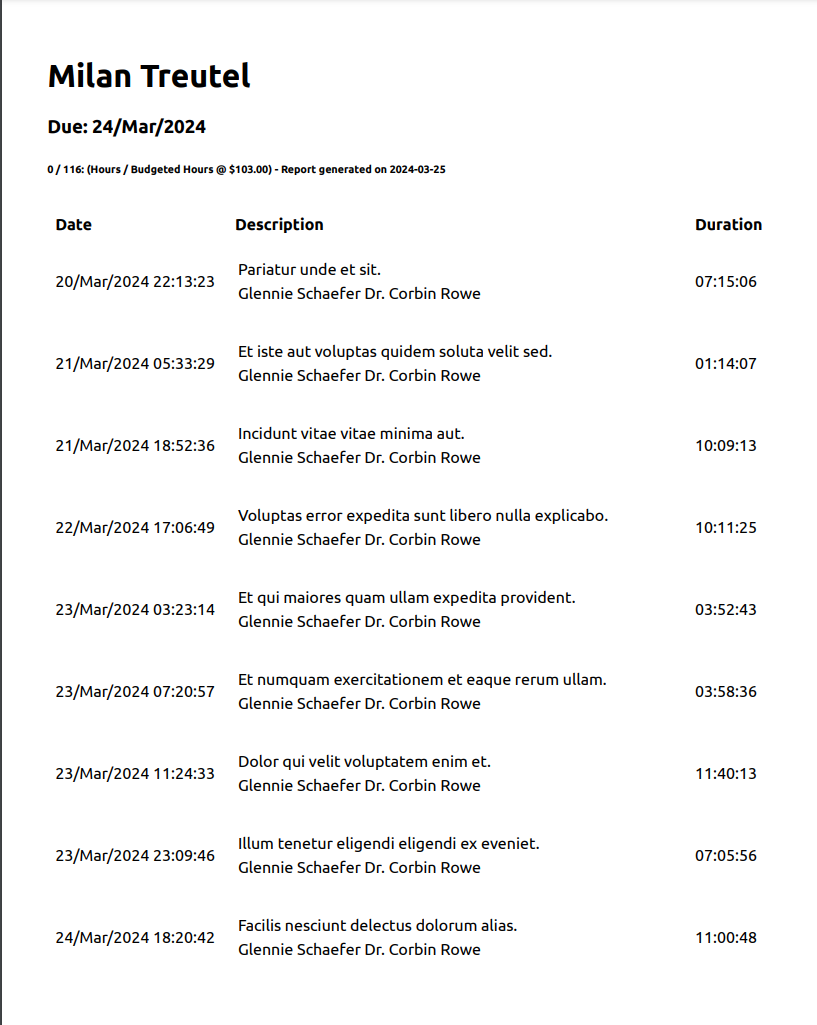

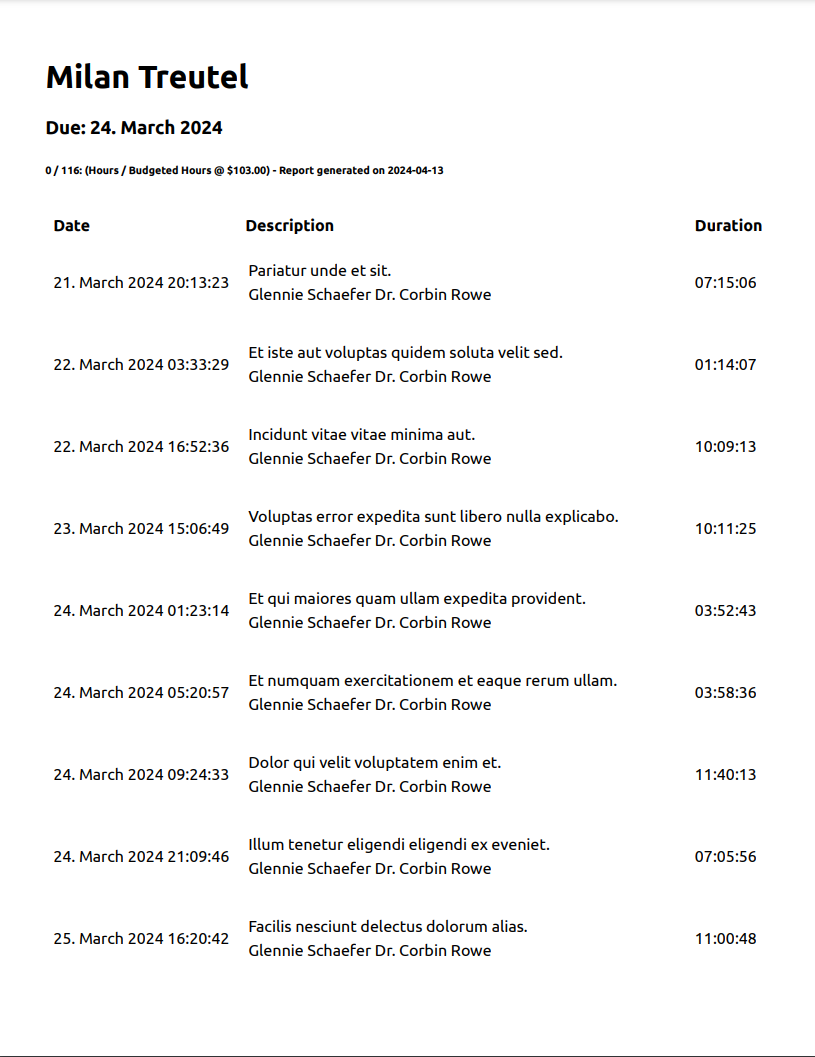

When run against our project template, we receive a PDF like this:

alt text

In our template we have constructed (use the Twig templating engine) a document which contain the projects details and a summary of each task time log entry.

Getting Started

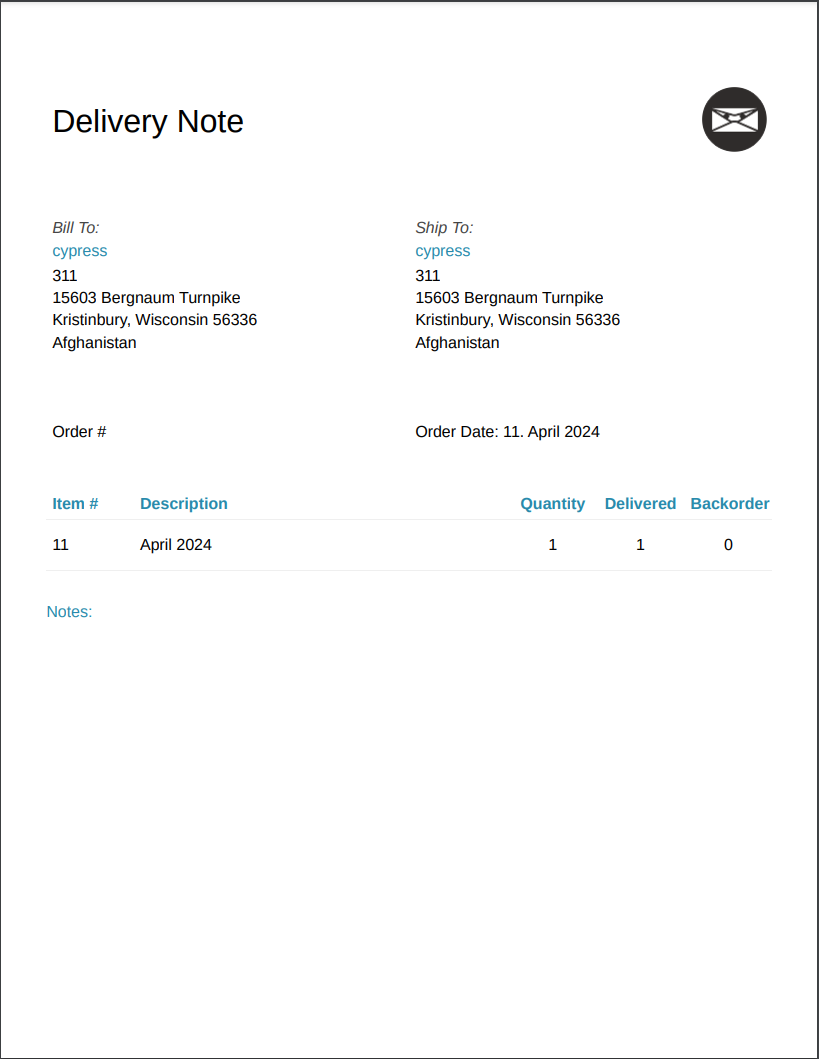

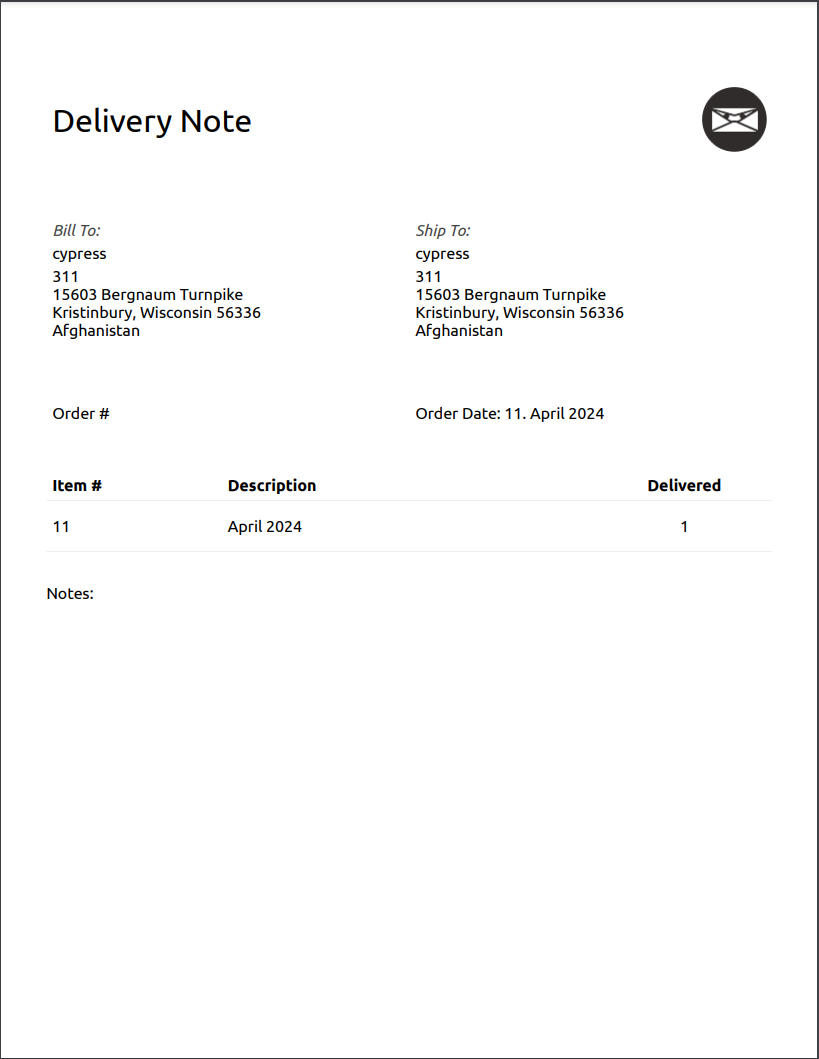

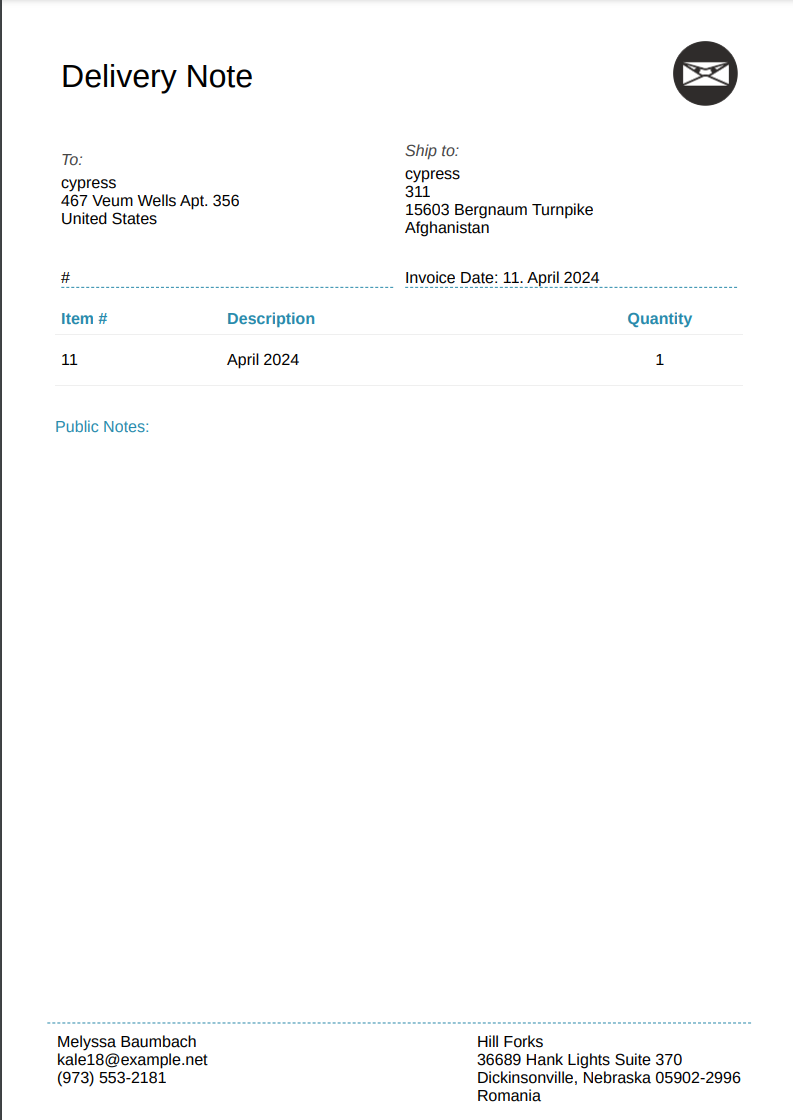

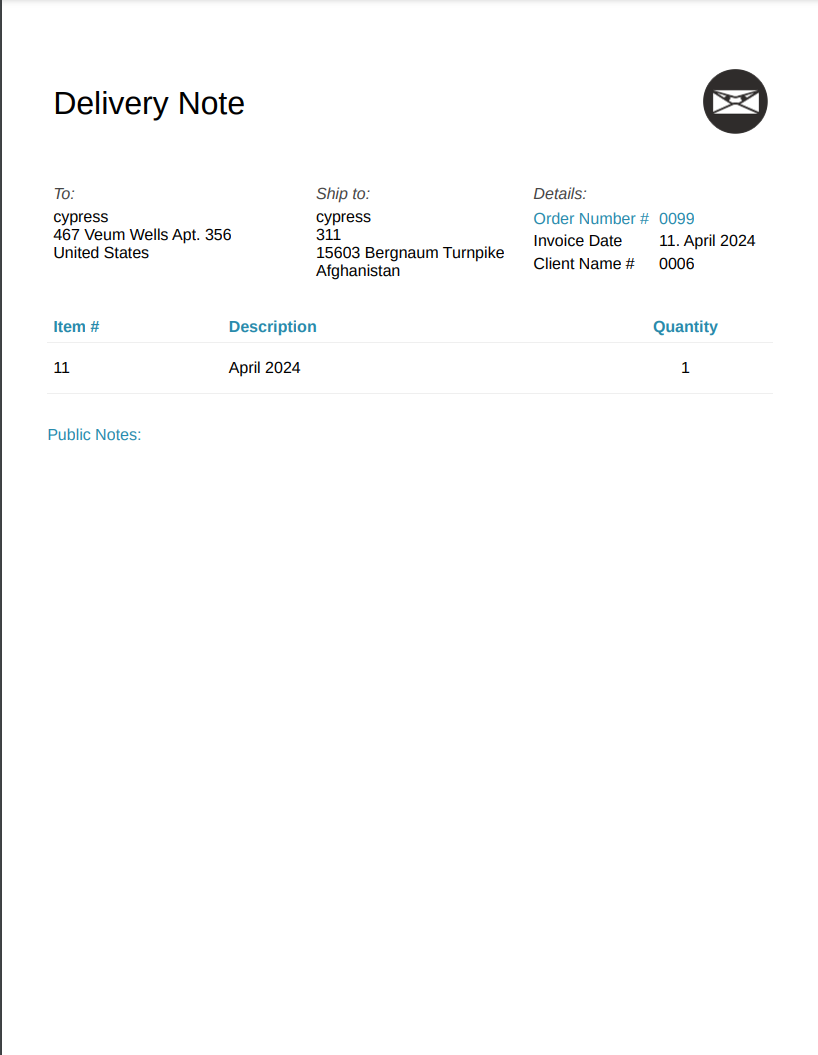

Delivery Note Example

Concepts

Templates are simple Html / CSS documents combined with the super powerful twig templating engine.

This combined with the raw data from Invoice Ninja allows you to create a document that exactly fits your requirements. To start, simply create a new template in

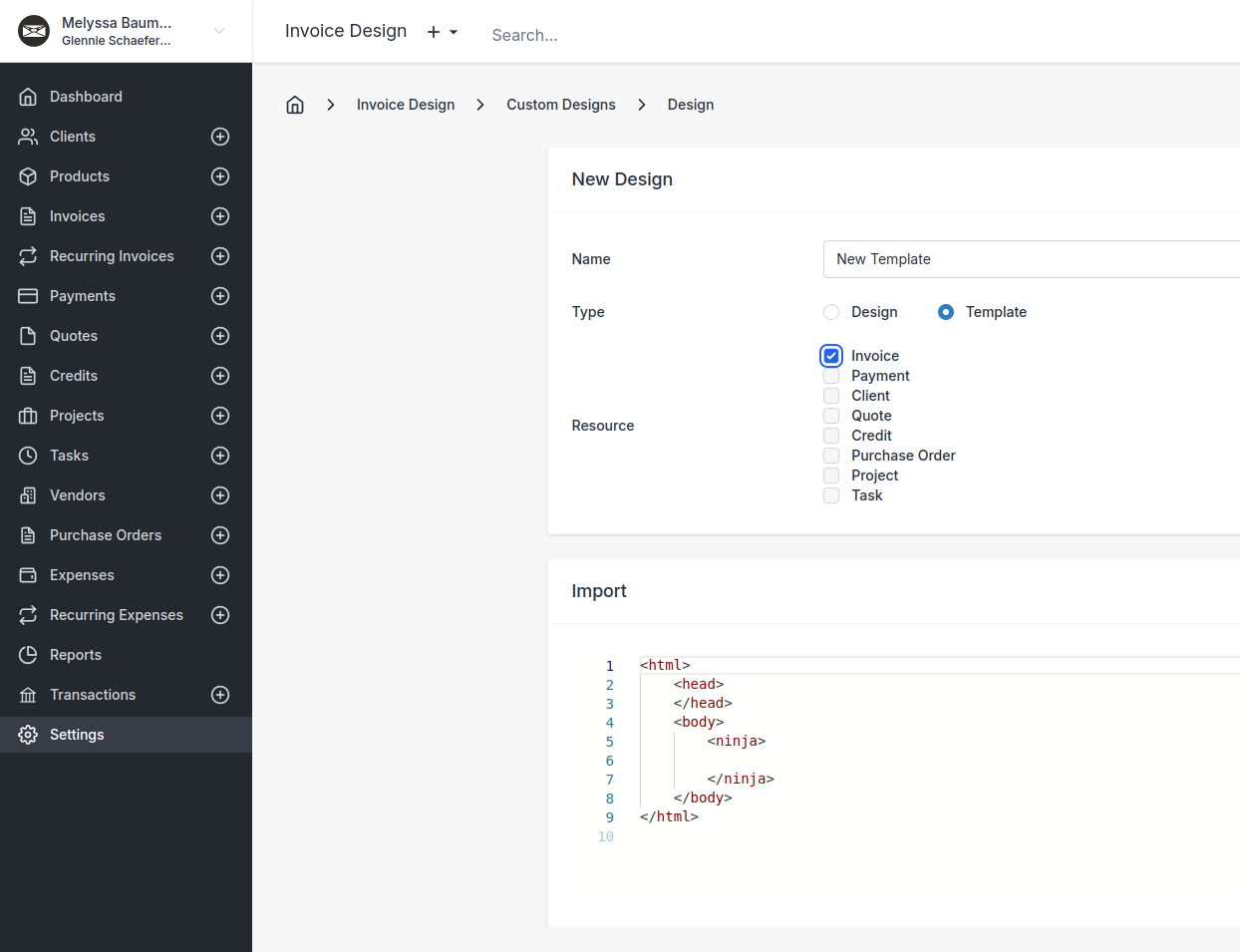

Settings / Invoice Design / Custom Designs

alt text

You will see that along with providing a name for the design/template, there is a new selector which allows you to choose whether the design is a regular design (ie for invoices / quotes) or a template which can also be a custom design, but also includes the power twig syntax and data to create bespoke templates.

After selecting the template option, a series of checkboxes will appear where you can associate the data types with the template. This is an important step as it allows us to provide the menu options for this template in the correct location and also provides the correct context when running the template;

for example, if you select the invoice checkbox, the system will be able to prepare your invoice/s to be run through the template. You can select multiple options here and the system will ensure this data is prepared and ready for use in the template.

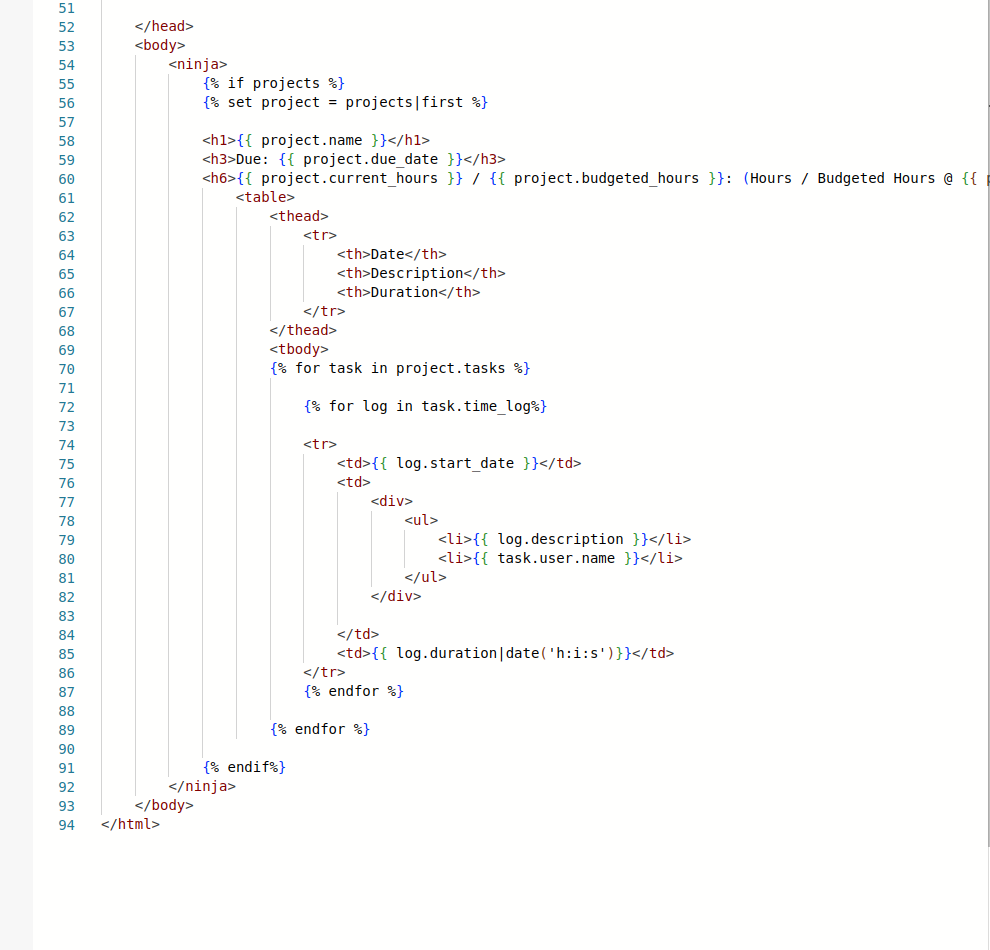

How did we construct this? Lets take a look at a template sample:

alt text

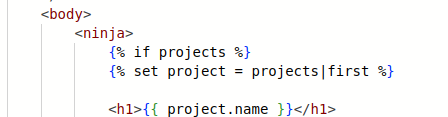

Embedded in the html/css is a dedicated set of <ninja></ninja> tags, this tells the template engine that we are now using the Twig Templating system.

alt text

Templates always assume that the data being processed in an array of objects. In this particular case, we have an array of projects. If your template will only ever consider a single project then you'll want to harvest the first project in your array of projects using this syntax:

{% if projects %}
{% set project = projects|first %}

Now that we have the project object, we can use this in our template, to print a variable to the template, you would wrap the variable in {{ }} like this:

<h1>{{ project.name }}</h1>
<h3>Due: {{ project.due_date }}</h3>
<h6>{{ project.current_hours }} / {{ project.budgeted_hours }}: (Hours / Budgeted Hours @ {{ project.task_rate }}) - Report generated on {{ "now"|date('Y-m-d') }}</h6>

We've now started to introduce variables into our template and also some nifty twig formats for dynamic data such as a date using this following syntax to present when the report was generated

Report generated on {{ "now"|date('Y-m-d') }}

Lets now loop through the project tasks and output the time_log data with the following sequence

{% for task in project.tasks %}

    {% for log in task.time_log %}

    <tr>
        <td>{{ log.start_date }}</td>
        <td>
            <div>
                <ul>
                    <li>{{ log.description }}</li>
                    <li>{{ task.user.name }}</li>
                </ul>

        </td>
        <td>{{ log.duration|date('h:i:s')}}</td>
    </tr>
    {% endfor %}

{% endfor %}

Here we have created a for loop, iterating over every task in the project, this follows with another for loop where we loop over every time_log entry in each task where we output the dates / description and duration of each task.

Finally, we are able to transform the log.duration (seconds), into a date format with h:i:s format (Hours:Minutes:Seconds)

Using blocks in templates

If you wish to use standard company/client/vendor details, this is super simple using standard div blocks:

<div id="client-details">

<div id="company-details">

<div id="company-address">

<div id="vendor-details">

<div id="shipping-address">

These will populate using the data stored in Settings > Invoice Designs for each block.

Data Access

Twig variables

Accessing data using twig would be as follows:

First we'd check to ensure the variable is available

{% if tasks|e %}
{% endif %}

Then we can iterate

{% if tasks|e %}

    {% for task in tasks %}
    {% endfor %}

{% endif %}

Accessing data is done using dot notation, for example retrieving the client name of a tasks project would be as follows:

{{ task.project.client.name }}

Invoice Ninja variables

Standard $ notation variables are also available within templates, this allows you to use familiar variables such as $invoice.amount - you can also combine twig and ninja variables like this to integrate conditionals into your template. ie

{% if invoice.balance > 0 %}
 $invoice.balance is payable!
{% else %}
 Invoice has been paid! Thanks!
{% endif %}

Allowed Tags

if
for
set
filter

Allowed Filters

escape
e
upper
lower
capitalize
filter
length
merge
format_currency
format_number
format_percent_number
map
join
first
date
sum
nl2br
reduce

Allowed Functions

range
cycle
constant
date

Allowed Properties

type_id

Allowed Methods

Statements

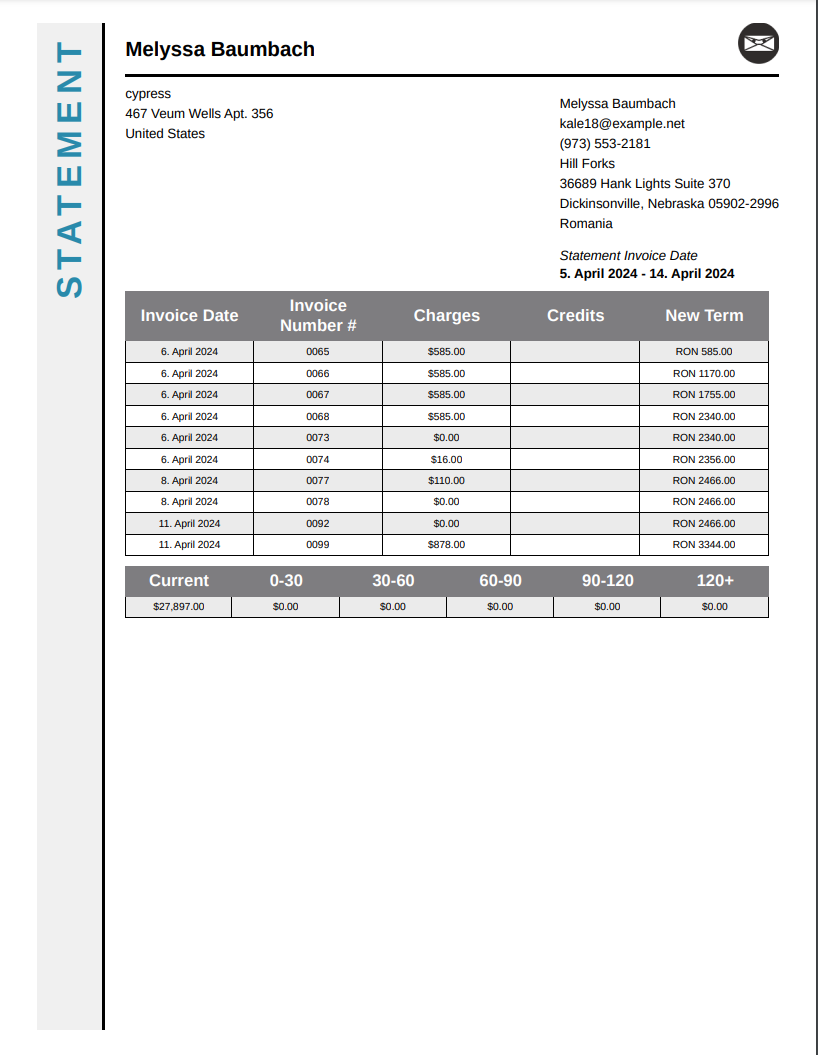

Statements are special objects in templates. Because the input data point is a client/s we need additional information to understand whether a template is a "statement" template or not.

When creating custom statements, you will want to insert a comment within the template so that the system can resolve that it is a statement for processing

<!doctype html>
<!-- Statement - TemplateID #TS4 ##statement##-->
<html>
<head>

Note the special text

##statement##

This will allow the system to resolve a custom statement.

Object Json Definitions

Here are the object definitions that are available.

Invoice

{
    "invoices": [
        {
            "amount": "$6,606.30",
            "balance": "$6,606.30",
            "status_id": 2,
            "status": "Sent",
            "amount_raw": "6606.300000",
            "balance_raw": "6606.300000",
            "number": "0001",
            "discount": "6.000000",
            "po_number": "Unde.",
            "date": "25. March 2024",
            "last_sent_date": "",
            "next_send_date": "",
            "due_date": "",
            "terms": "Default company invoice terms",
            "public_notes": "",
            "private_notes": "",
            "uses_inclusive_taxes": false,
            "tax_name1": "GST",
            "tax_rate1": 10,
            "tax_name2": "VAT",
            "tax_rate2": 17.5,
            "tax_name3": "THIRDTAX",
            "tax_rate3": 5,
            "total_taxes": "$1,905.44",
            "total_taxes_raw": "1905.440000",
            "is_amount_discount": false,
            "footer": "Default invoice footer",
            "partial": "0.000000",
            "partial_due_date": "",
            "custom_value1": "",
            "custom_value2": "",
            "custom_value3": "",
            "custom_value4": "",
            "custom_surcharge1": 0,
            "custom_surcharge2": 0,
            "custom_surcharge3": 0,
            "custom_surcharge4": 0,
            "exchange_rate": 1,
            "custom_surcharge_tax1": false,
            "custom_surcharge_tax2": false,
            "custom_surcharge_tax3": false,
            "custom_surcharge_tax4": false,
            "reminder1_sent": "",
            "reminder2_sent": "",
            "reminder3_sent": "",
            "reminder_last_sent": "",
            "paid_to_date": "$0.00",
            "auto_bill_enabled": false,
            "line_items": [
                {
                    "quantity": 1,
                    "cost": "$372.00",
                    "product_key": "Ut in.",
                    "notes": "Architecto at est.",
                    "discount": 0,
                    "is_amount_discount": false,
                    "tax_name1": "Sales Tax",
                    "tax_rate1": 5,
                    "tax_name2": "",
                    "tax_rate2": 0,
                    "tax_name3": "",
                    "tax_rate3": 0,
                    "sort_id": "0",
                    "line_total": "$372.00",
                    "gross_line_total": "$389.48",
                    "custom_value1": "https://picsum.photos/200",
                    "custom_value2": "75",
                    "custom_value3": "Nulla est incidunt.",
                    "custom_value4": "Consequatur in.",
                    "type_id": "1",
                    "product_cost": "$0.00",
                    "tax_amount": "$17.48",
                    "date": "",
                    "tax_id": "1",
                    "task_id": "",
                    "expense_id": "",
                    "_id": "358982ee-f062-42f3-9dcf-4068e9347fa0",
                    "cost_raw": 372,
                    "discount_raw": 0,
                    "line_total_raw": "372.00",
                    "gross_line_total_raw": 389.48,
                    "tax_amount_raw": 17.48,
                    "product_cost_raw": 0,
                    "task": {
                        "number": "0007",
                        "description": "The task description",
                        "duration": 726023,
                        "rate": "$0.00",
                        "rate_raw": "0.000000",
                        "created_at": "21. March 2024",
                        "updated_at": "27. March 2024",
                        "date": "21. March 2024",
                        "project": {
                            "name": "Date App",
                            "number": "0006",
                            "created_at": "22. March 2024",
                            "updated_at": "22. March 2024",
                            "task_rate": "$0.00",
                            "task_rate_raw": "0.000000",
                            "due_date": "",
                            "private_notes": "",
                            "public_notes": "",
                            "budgeted_hours": 1200,
                            "custom_value1": "",
                            "custom_value2": "",
                            "custom_value3": "",
                            "custom_value4": "",
                            "color": "",
                            "current_hours": 0,
                            "client": {
                                "name": "Kilback-Stoltenberg",
                                "balance": "0.000000",
                                "payment_balance": "0.000000",
                                "credit_balance": "2084.140000",
                                "vat_number": "428950405",
                                "address1": "5 Wallaby Way",
                                "address2": "Apt 1",
                                "phone": "555 123-1321",
                                "city": "Sydney",
                                "state": "NSW",
                                "postal_code": "2113",
                                "country_id": "840",
                                "group": "Special Orders",
                                "location": {
                                    "location_name": "Billy",
                                    "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                                    "address1": "44 Nice Street",
                                    "address2": "Apt 5",
                                    "city": "Nicest City",
                                    "state": "Best State",
                                    "postal_code": "90210",
                                    "country": "USA"
                                }
                            },
                            "user": {
                                "name": "Glennie Schaefer Dr. Corbin Rowe",
                                "email": "small@example.com"
                            }
                        },
                        "time_log": [
                            {
                                "start_date_raw": 1711012404,
                                "start_date": "20. March 2024 22:13:24",
                                "end_date_raw": 1711095351,
                                "end_date": "21. March 2024 21:15:51",
                                "description": "Consequatur voluptas aperiam sapiente optio non dolores quaerat.",
                                "billable": true,
                                "duration_raw": 82947,
                                "duration": "23:02:27"
                            },
                            {
                                "start_date_raw": 1711095651,
                                "start_date": "21. March 2024 21:20:51",
                                "end_date_raw": 1711149254,
                                "end_date": "22. March 2024 12:14:14",
                                "description": "Aut iusto ducimus molestiae reprehenderit fugiat cum.",
                                "billable": true,
                                "duration_raw": 53603,
                                "duration": "14:53:23"
                            },
                        ],
                        "custom_value1": "",
                        "custom_value2": "",
                        "custom_value3": "",
                        "custom_value4": "",
                        "status": "Ready to do",
                        "user": {
                            "name": "Glennie Schaefer Dr. Corbin Rowe",
                            "email": "small@example.com"
                        },
                        "client": {
                            "name": "Kilback-Stoltenberg",
                            "balance": "0.000000",
                            "payment_balance": "0.000000",
                            "credit_balance": "2084.140000",
                            "vat_number": "428950405",
                            "address1": "5 Wallaby Way",
                            "address2": "Apt 1",
                            "phone": "555 123-1321",
                            "city": "Sydney",
                            "state": "NSW",
                            "postal_code": "2113",
                            "country_id": "840",
                            "group": "Special Orders",
                            "location": {
                                "location_name": "Billy",
                                "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                                "address1": "44 Nice Street",
                                "address2": "Apt 5",
                                "city": "Nicest City",
                                "state": "Best State",
                                "postal_code": "90210",
                                "country": "USA"
                            }
                        }
                    }
                },
                {
                    "quantity": 1,
                    "cost": "$73.00",
                    "product_key": "Non.",
                    "notes": "Aut sunt totam.",
                    "discount": 0,
                    "is_amount_discount": false,
                    "tax_name1": "Sales Tax",
                    "tax_rate1": 5,
                    "tax_name2": "",
                    "tax_rate2": 0,
                    "tax_name3": "",
                    "tax_rate3": 0,
                    "sort_id": "0",
                    "line_total": "$73.00",
                    "gross_line_total": "$76.43",
                    "custom_value1": "https://picsum.photos/200",
                    "custom_value2": "29",
                    "custom_value3": "Accusamus quo.",
                    "custom_value4": "Qui similique culpa.",
                    "type_id": "1",
                    "product_cost": "$0.00",
                    "tax_amount": "$3.43",
                    "date": "",
                    "tax_id": "1",
                    "task_id": "",
                    "expense_id": "",
                    "_id": "013efb0f-5f11-45fc-b404-20427fb0e2a0",
                    "cost_raw": 73,
                    "discount_raw": 0,
                    "line_total_raw": "73.00",
                    "gross_line_total_raw": 76.43,
                    "tax_amount_raw": 3.43,
                    "product_cost_raw": 0
                },
            ],

            "client": {
                "name": "Kub, Koepp and Conroy",
                "balance": "6606.300000",
                "payment_balance": "0.000000",
                "credit_balance": "0.000000",
                "vat_number": "373145743",
                "address1": "5 Wallaby Way",
                "address2": "Apt 1",
                "phone": "555 123-1321",
                "city": "Sydney",
                "state": "NSW",
                "postal_code": "2113",
                "country_id": "840",
                "group": "Special Orders",
                "location": {
                    "location_name": "Billy",
                    "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                    "address1": "44 Nice Street",
                    "address2": "Apt 5",
                    "city": "Nicest City",
                    "state": "Best State",
                    "postal_code": "90210",
                    "country": "USA"
                }
            },
            "payments": [
                {
                    "status": "Refunded",
                    "badge": "<h6><span class=\"badge badge-primary\">Refunded<\/span><\/h6>",
                    "amount": "$104.95",
                    "applied": "$104.95",
                    "balance": "-$104.95",
                    "refunded": "$104.95",
                    "amount_raw": "104.950000",
                    "applied_raw": "104.950000",
                    "refunded_raw": "104.950000",
                    "balance_raw": -104.95,
                    "date": "24. March 2024",
                    "method": "",
                    "currency": "USD",
                    "exchange_rate": 1,
                    "transaction_reference": null,
                    "is_manual": 1,
                    "number": "0003",
                    "custom_value1": "",
                    "custom_value2": "",
                    "custom_value3": "",
                    "custom_value4": "",
                    "created_at": "25. March 2024",
                    "updated_at": "25. March 2024",
                    "refund_activity": ["24. March 2024 Invoice #0029 $104.95 Refunded"],
                    "client": {
                        "name": "cypress",
                        "balance": "0.000000",
                        "payment_balance": "333.000000",
                        "credit_balance": "0.000000",
                        "vat_number": "561724719",
                        "address1": "5 Wallaby Way",
                        "address2": "Apt 1",
                        "phone": "555 123-1321",
                        "city": "Sydney",
                        "state": "NSW",
                        "postal_code": "2113",
                        "country_id": "840",
                        "group": "Special Orders",
                        "location": {
                            "location_name": "Billy",
                            "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                            "address1": "44 Nice Street",
                            "address2": "Apt 5",
                            "city": "Nicest City",
                            "state": "Best State",
                            "postal_code": "90210",
                            "country": "USA"
                        }
                    },
                    "paymentables": [
                        {
                            "invoice": "0029",
                            "amount_raw": "104.9500",
                            "refunded_raw": "104.9500",
                            "net_raw": 0,
                            "amount": "$104.95",
                            "refunded": "$104.95",
                            "net": "$0.00",
                            "is_credit": false,
                            "date": "24. March 2024",
                            "created_at": "25. March 2024",
                            "updated_at": "25. March 2024",
                            "timestamp": 1711329333
                        }
                    ],
                }
            ],
            "total_tax_map": [
                {
                    "name": "GST 10%",
                    "total": 470.09
                },
                {
                    "name": "VAT 17.5%",
                    "total": 822.65
                },
                {
                    "name": "THIRDTAX 5%",
                    "total": 235.04
                }
            ],
            "line_tax_map": [
                {
                    "name": "Sales Tax 5%",
                    "total": 124.72999999999999
                },
                {
                    "name": "VAT 17.5%",
                    "total": 117.95
                },
                {
                    "name": "GST 10%",
                    "total": 134.98
                }
            ]
        }
    ]
}

Payment

{
    "payments": [
        {
            "status": "Completed",
            "badge": "<h6><span class=\"badge badge-info\">Completed<\/span><\/h6>",
            "amount": "$6,723.74",
            "applied": "$6,723.74",
            "balance": "$0.00",
            "refunded": "$0.00",
            "amount_raw": "6723.740000",
            "applied_raw": "6723.740000",
            "refunded_raw": "0.000000",
            "balance_raw": 0,
            "date": "22. March 2024",
            "method": "",
            "currency": "USD",
            "exchange_rate": 1,
            "transaction_reference": "Manual entry",
            "is_manual": 1,
            "number": "0002",
            "custom_value1": "",
            "custom_value2": "",
            "custom_value3": "",
            "custom_value4": "",
            "created_at": "22. March 2024",
            "updated_at": "22. March 2024",
            "client": {
                "name": "Kilback-Stoltenberg",
                "balance": "0.000000",
                "payment_balance": "0.000000",
                "credit_balance": "2084.140000",
                "vat_number": "428950405",
                "address1": "5 Wallaby Way",
                "address2": "Apt 1",
                "phone": "555 123-1321",
                "city": "Sydney",
                "state": "NSW",
                "postal_code": "2113",
                "country_id": "840",
                "group": "Special Orders",
                "location": {
                    "location_name": "Billy",
                    "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                    "address1": "44 Nice Street",
                    "address2": "Apt 5",
                    "city": "Nicest City",
                    "state": "Best State",
                    "postal_code": "90210",
                    "country": "USA"
                }
            },
            "paymentables": [],
            "refund_activity": []
        }
    ]
}

Task

{
    "tasks": [
        {
            "number": "0007",
            "description": "The task description",
            "duration": 726023,
            "rate": "$0.00",
            "rate_raw": "0.000000",
            "created_at": "21. March 2024",
            "updated_at": "27. March 2024",
            "date": "21. March 2024",
            "project": {
                "name": "Date App",
                "number": "0006",
                "created_at": "22. March 2024",
                "updated_at": "22. March 2024",
                "task_rate": "$0.00",
                "task_rate_raw": "0.000000",
                "due_date": "",
                "private_notes": "",
                "public_notes": "",
                "budgeted_hours": 1200,
                "custom_value1": "",
                "custom_value2": "",
                "custom_value3": "",
                "custom_value4": "",
                "color": "",
                "current_hours": 0,
                "tasks": [],
                "client": {
                    "name": "Kilback-Stoltenberg",
                    "balance": "0.000000",
                    "payment_balance": "0.000000",
                    "credit_balance": "2084.140000",
                    "vat_number": "428950405",
                    "address1": "5 Wallaby Way",
                    "address2": "Apt 1",
                    "phone": "555 123-1321",
                    "city": "Sydney",
                    "state": "NSW",
                    "postal_code": "2113",
                    "country_id": "840",
                    "group": "Special Orders",
                    "location": {
                        "location_name": "Billy",
                        "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                        "address1": "44 Nice Street",
                        "address2": "Apt 5",
                        "city": "Nicest City",
                        "state": "Best State",
                        "postal_code": "90210",
                        "country": "USA"
                    }
                },
                "user": {
                    "name": "Glennie Schaefer Dr. Corbin Rowe",
                    "email": "small@example.com"
                }
            },

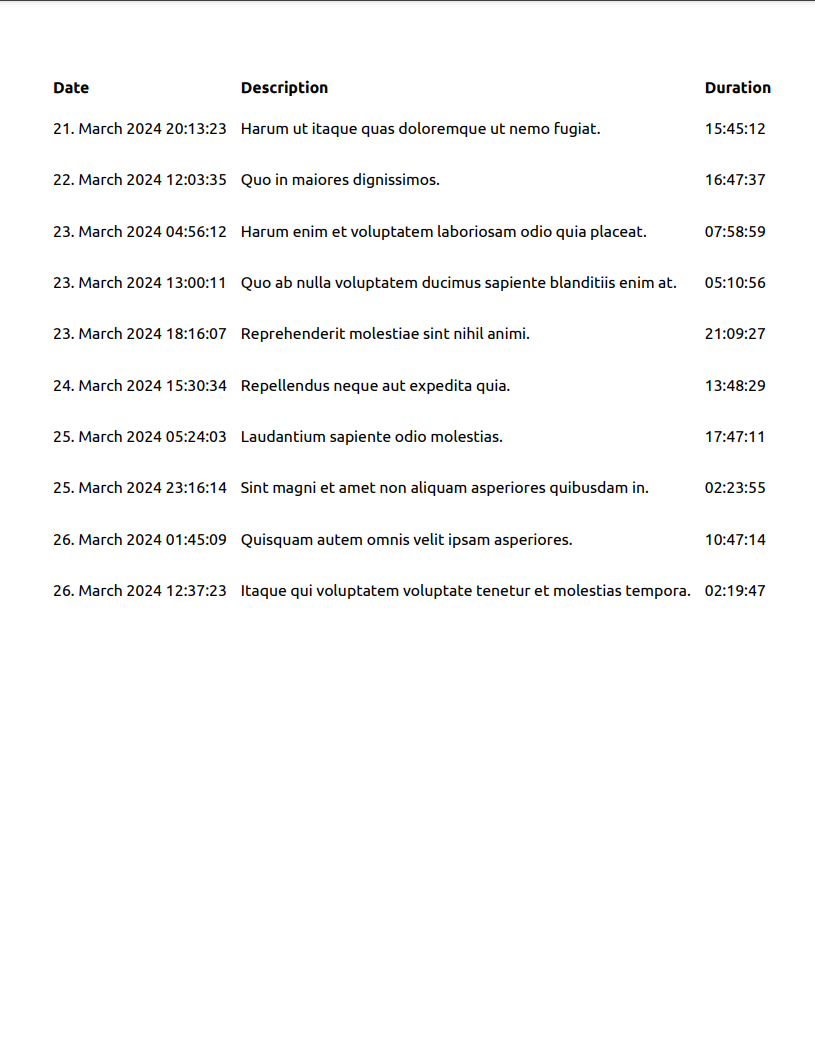

            "time_log": [
                {
                    "start_date_raw": 1711012404,
                    "start_date": "20. March 2024 22:13:24",
                    "end_date_raw": 1711095351,
                    "end_date": "21. March 2024 21:15:51",
                    "description": "Consequatur voluptas aperiam sapiente optio non dolores quaerat.",
                    "billable": true,
                    "duration_raw": 82947,
                    "duration": "23:02:27"
                },
                {
                    "start_date_raw": 1711095651,
                    "start_date": "21. March 2024 21:20:51",
                    "end_date_raw": 1711149254,
                    "end_date": "22. March 2024 12:14:14",
                    "description": "Aut iusto ducimus molestiae reprehenderit fugiat cum.",
                    "billable": true,
                    "duration_raw": 53603,
                    "duration": "14:53:23"
                },
            ],
            "custom_value1": "",
            "custom_value2": "",
            "custom_value3": "",
            "custom_value4": "",
            "status": "Ready to do",
            "user": {
                "name": "Glennie Schaefer Dr. Corbin Rowe",
                "email": "small@example.com"
            },
            "client": {
                "name": "Kilback-Stoltenberg",
                "balance": "0.000000",
                "payment_balance": "0.000000",
                "credit_balance": "2084.140000",
                "vat_number": "428950405",
                "address1": "5 Wallaby Way",
                "address2": "Apt 1",
                "phone": "555 123-1321",
                "city": "Sydney",
                "state": "NSW",
                "postal_code": "2113",
                "country_id": "840",
                "group": "Special Orders",
                "location": {
                    "location_name": "Billy",
                    "address": "44 Nice Street<br/>Apt 5<br/>Nicest City, Best State 90210<br/>United States<br/>",
                    "address1": "44 Nice Street",
                    "address2": "Apt 5",
                    "city": "Nicest City",
                    "state": "Best State",
                    "postal_code": "90210",
                    "country": "USA"
                }
            }
        }
    ]
}

Definitions

Invoice / Quote / Credit / Purchase Order Definition

Field	Description	Example
amount	formatted currency	$6,606.30
balance	formatted currency	$6,606.30
status_id	integer representation of the status	2
status	text representation of invoice status	Sent
amount_raw	float	6606.300000
balance_raw	float	6606.300000
number	invoice number	0001
discount	float	6.000000
po_number	string	Unde.
date	string	25. March 2024
last_sent_date	string	25. March 2024
next_send_date	string	25. March 2024
due_date	string	25. March 2024
terms	string	Default company invoice terms
public_notes	string	Public Notes
private_notes	string	Private notes
uses_inclusive_taxes	boolean	false
tax_name1	string	GST
tax_rate1	float	1
tax_name2	string	VAT
tax_rate2	float	17.
tax_name3	string	THIRDTAX
tax_rate3	float	0
total_taxes	formatted currency	$1,905.44
total_taxes_raw	float	1905.440000
is_amount_discount	bool	false
footer	string	Default invoice footer
partial	float	0.000000
partial_due_date	string	24/1/2024
custom_value1	string	Custom Value
custom_value2	string	Custom Value
custom_value3	string	Custom Value
custom_value4	string	Custom Value
custom_surcharge1	float	0
custom_surcharge2	float	0
custom_surcharge3	float	0
custom_surcharge4	float	0
exchange_rate	float	1
custom_surcharge_tax1	boolean	false
custom_surcharge_tax2	boolean	false
custom_surcharge_tax3	boolean	false
custom_surcharge_tax4	boolean	false
reminder1_sent	string	25. March 2024
reminder2_sent	string	25. March 2024
reminder3_sent	string	25. March 2024
reminder_last_sent	string	25. March 2024
paid_to_date	formatted currency	$0.00
auto_bill_enabled	booleam	false
line_items	array	Line items
client	object	Client
payments	array	Payment
total_tax_map	array	Tax Map
line_tax_map	array	Tax Map

Line items definition

Field	Description	Example
quantity	float	1
cost	formatted currency	$372.00
product_key	string	Ut in.
notes	string	Architecto at est.
discount	float	0
is_amount_discount	boolean	false
tax_name1	string	Sales Tax
tax_rate1	float	5
tax_name2	string
tax_rate2	float	0
tax_name3	string
tax_rate3	float	0
sort_id	float	0
line_total	formatted currency	$372.00
gross_line_total	formatted currency	$389.48
custom_value1	string	https://picsum.photos/200
custom_value2	string	75
custom_value3	string	Nulla est incidunt.
custom_value4	string	Consequatur in.
type_id	string	1
product_cost	formatted currency	$0.00
tax_amount	formatted currency	$17.48
date	string	24/1/2023
tax_id	string	1
task_id	string
task	object	Task
expense_id	string
_id	string	358982ee-f062-42f3-9dcf-4068e9347fa0
cost_raw	float	372
net_cost	string	$372.00
net_cost_raw	float	372.00
discount_raw	float	0
line_total_raw	float	372.00
gross_line_total_raw	float	389.48
tax_amount_raw	float	17.48
product_cost_raw	float	0

Tax map definition

Field	Description	Example
name	string	GST 10%
total	float	470.09

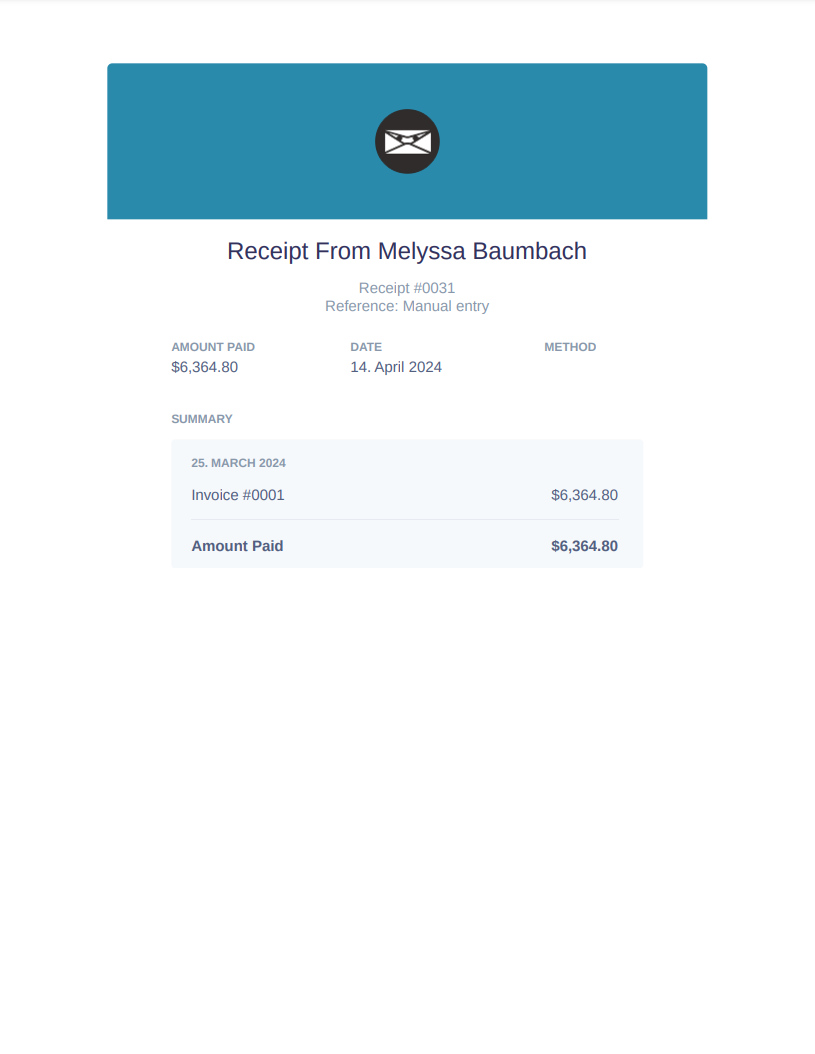

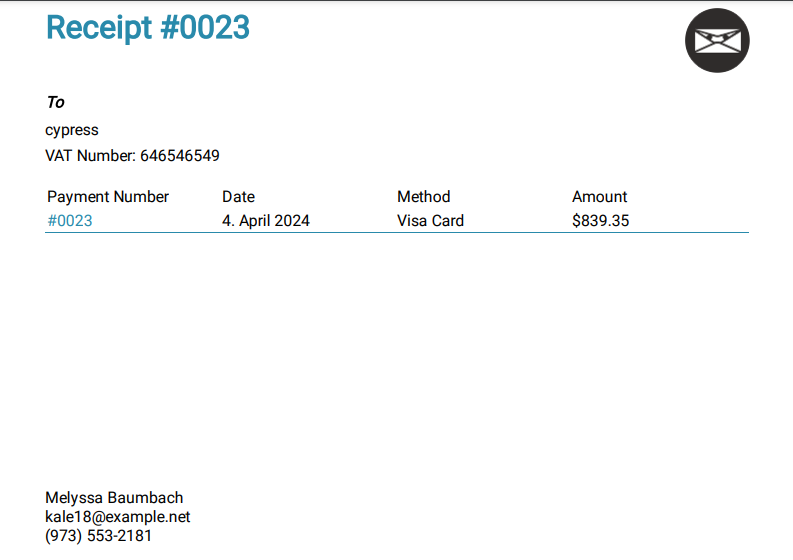

Payment definition

Field	Description	Example
status	string	Refunded
badge	string	Refunded
amount	formatted currency	$104.95
applied	formatted currency	$104.95
balance	formatted currency	-$104.95
refunded	formatted currency	$104.95
amount_raw	float	104.950000
applied_raw	float	104.950000
refunded_raw	float	104.950000
balance_raw	float	-104.95
date	string	24. March 2024
method	string	Visa
currency	string	USD
exchange_rate	float	1
transaction_reference	string	2sd2fv34
is_manual	boolean	1
number	string	0003
custom_value1	string	Custom Value
custom_value2	string	Custom Value
custom_value3	string	Custom Value
custom_value4	string	Custom Value
created_at	string	25. March 2024
updated_at	string	25. March 2024

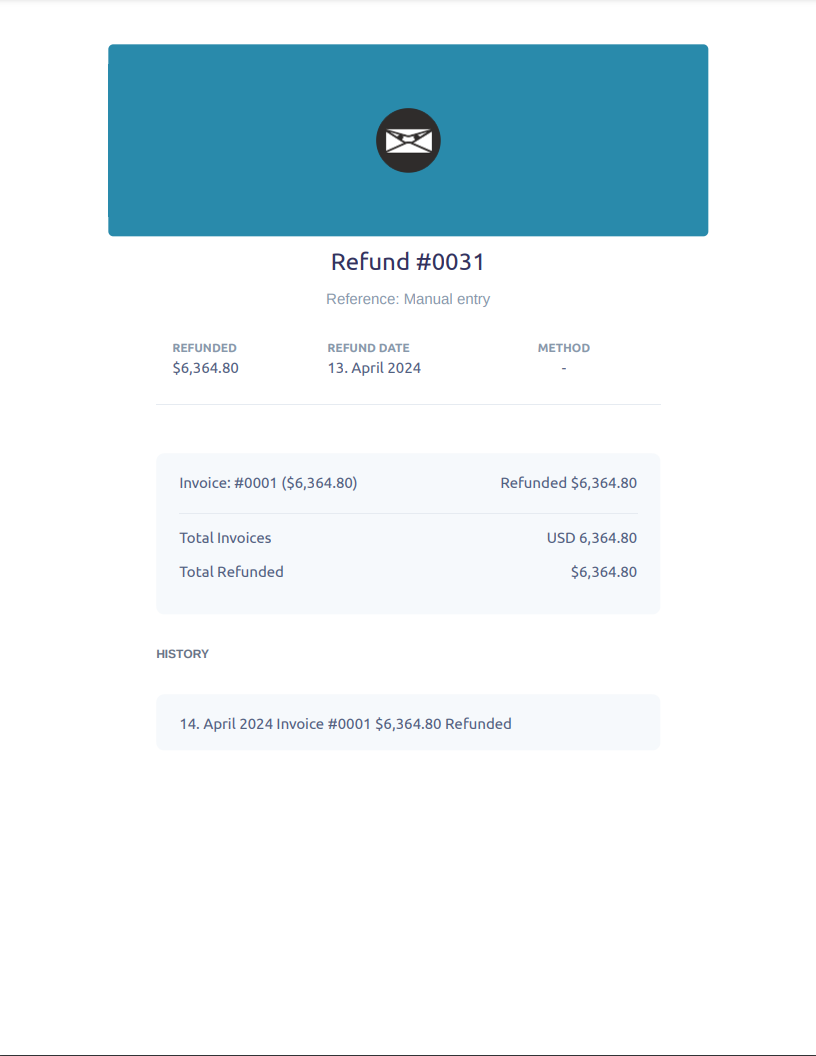

refund_activity	array of string	[24. March 2024 Invoice #0029 $104.95 Refunded]
paymentables	array	Paymentables
client	object	Client

Paymentables definition

Field	Description	Example
invoice	string	0029
amount_raw	float	104.9500
refunded_raw	float	104.9500
net_raw	float	0
amount	formatted currency	$104.95
refunded	formatted currency	$104.95
net	formatted currency	$0.00
is_credit	boolean	false
date	string	24. March 2024
created_at	string	25. March 2024
updated_at	string	25. March 2024
timestamp	unix timestamp	171132933

Task Definition

Field	Description	Example
number	Task number	0007
description	Task Description	Service for bob
duration	Duration of task in seconds	72602
rate	Task rate currency formatted	$0.00
rate_raw	Task rate raw float	0.000000
created_at	Date task created	21. March 2024
updated_at	Date task updated	27. March 2024
date	Date of task	21. March 2024
custom_value1	Task Custom Value 1	Custom Value
custom_value2	Task Custom Value 2	Custom Value
custom_value3	Task Custom Value 3	Custom Value
custom_value4	Task Custom Value 4	Custom Value
status	The task status	Ready to do
user	The Creating User Object	See User Property definition
client	The Client Object	See Client Property definition
project	The Client Object	See Client Property definition
time_log	Array of time log entries	See time_log definition

Expense Definition

Field	Description	Example
category	The expense category	Travel
amount	The expense amount	$100.00
amount_raw	The expense amount raw	100.00
date	The expense date	24. March 2024
private_notes	The expense private notes	Private notes
public_notes	The expense public notes	Public notes
exchange_rate	The expense exchange rate	1.00
tax_name1	The expense tax name 1	GST
tax_rate1	The expense tax rate 1	10
tax_name2	The expense tax name 2	VAT
tax_rate2	The expense tax rate 2	17
tax_name3	The expense tax name 3	THIRDTAX
tax_rate3	The expense tax rate 3	0
tax_amount1	The expense tax amount 1	$10.00
tax_amount2	The expense tax amount 2	$17.00
tax_amount3	The expense tax amount 3	$0.00
payment_date	The expense payment date	24. March 2024
transaction_reference	The expense transaction reference	1234567890
custom_value1	The expense custom value 1	Custom Value
custom_value2	The expense custom value 2	Custom Value
custom_value3	The expense custom value 3	Custom Value
custom_value4	The expense custom value 4	Custom Value
calculate_tax_by_amount	The expense calculate tax by amount	true
uses_inclusive_taxes	The expense uses inclusive taxes	true
client	The expense client	Client
vendor	The expense vendor	Vendor
project	The expense project	Project

Vendor Definition

Field	Description	Example
name	The vendor name	Vendor Name
email	The vendor email	vendor@example.com
phone	The vendor phone	1234567890
website	The vendor website	https://www.vendor.com
number	The vendor number	1234567890
id_number	The vendor id number	1234567890
vat_number	The vendor vat number	1234567890
currency	The vendor currency	USD
custom_value1	The vendor custom value 1	Custom Value
custom_value2	The vendor custom value 2	Custom Value
custom_value3	The vendor custom value 3	Custom Value
custom_value4	The vendor custom value 4	Custom Value
address	The vendor address	1234 Main St, Anytown, USA
shipping_address	The vendor shipping address	1234 Main St, Anytown, USA
locale	The vendor locale	en

Time Log Definition

Time Log Array (of objects)
start_date_raw	unix timestamp	1711095651
start_date	Formatted start date	21. March 2024 21:20:51
end_date_raw	unix timestamp	1711149254
end_date	Formatted start date	22. March 2024 12:14:14
description	The task item description	Aut iusto ducimus molestiae reprehenderit fugiat cum
billable	boolean - defines if this time entry is billable	true
duration_raw	seconds - raw duration of entry	53603
duration	formatted duration	14:53:23

User Definition

Creating User Object
name	The users name	Bob Jane
email	The users email	bob@gmail.com

Client Definition

Client Object
name	The full client name	Kilback-Stoltenberg
balance	The client balance	0.000000
payment_balance	The client payment balance	0.000000
credit_balance	Thje client credit balance	2084.140000
vat_number	The client VAT Number	428950405
currency	The client currency code	USD
locale	The client locale	en
address1	The first line of the billing address	5 Wallaby Way
address2	The second line of the billing address	Apt 1
city	The city	Sydney
state	The state or province	NSW
postal_code	The postal or zip code	2113
country_id	The country ID	840
group	The client group name	Special Orders
location	The client location object	Location
phone	The client phone number	555 123-1321
address	The formatted billing address	1 Wallaby Way, Sydney
shipping_address	The formatted shipping address	2 Wallaby Way, Sydney
custom_value1	The first client custom value	Bob
custom_value2	The second client custom value	Blue
custom_value3	The third client custom value	Batman
custom_value4	The fourth client custom value	Pistachio

Location Definition

Location Object
location_name	The location name	Billy
address	The formatted location address with HTML line breaks	44 Nice Street Apt 5 Nicest City, Best State 90210 United States
address1	The first line of the location address	44 Nice Street
address2	The second line of the location address	Apt 5
city	The city	Nicest City
state	The state or province	Best State
postal_code	The postal or zip code	90210
country	The country name	USA

Project Definition

Project Object
name	The project name	Date App
number	The project number	0006
created_at	Date created	22. March 2024
updated_at	Date updated	22. March 2024
task_rate	Task Rate for project (formatted in currency)	$0.00
task_rate_raw	Task rate for project - float format	0.000000
due_date	The due date for the project	22. March 2025
private_notes	The private notes of the project	Private notes
public_notes	The public notes of the project	Public notes
budgeted_hours	The number of hours budgeted for the project	200
custom_value1	Project Custom Value 1	Custom Value
custom_value2	Project Custom Value 2	Custom Value
custom_value3	Project Custom Value 3	Custom Value
custom_value4	Project Custom Value 4	Custom Value
color	The color associated with the project	#fff
current_hours	The accured hours of the project so far	100
tasks	Array of tasks	Task
expenses	Array of expenses	Expense
user	The Creating User Object	User
client	The Client Object	Client

Sample Templates

Statements

Name	Description

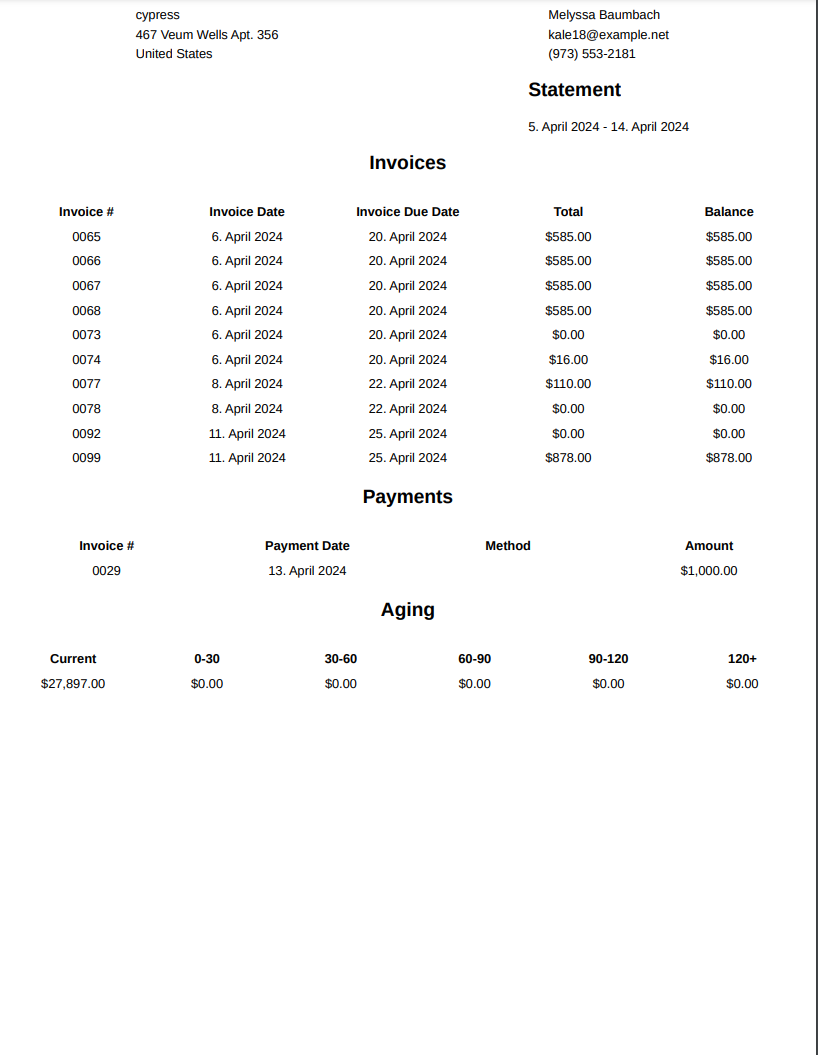

TS1	Plain Statement	Download
TS2	Color Statement	Download
TS3	Vertical Statement	Download

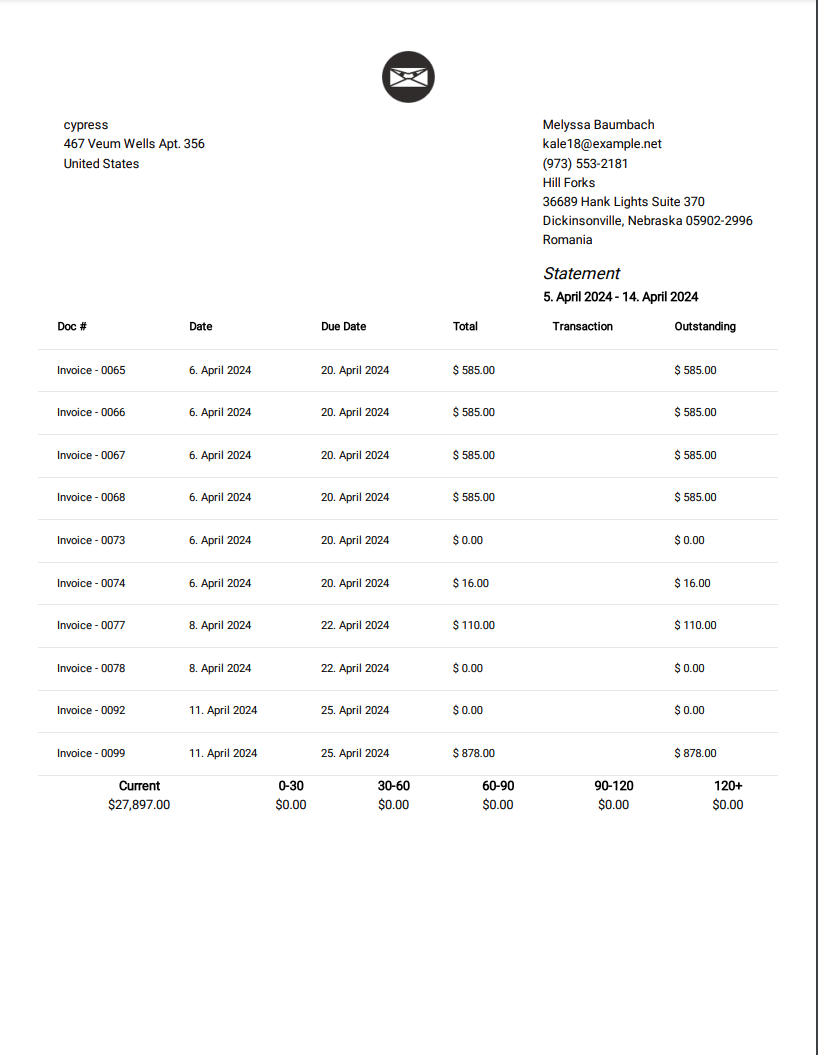

TS4	Logo Statement	Download

Delivery Notes

Name	Description
TD4	3 Column	Download
TD5	2 Column / Footer	Download
TD12	2 Column	Download
TD13	2 Column Mono	Download

Payment Receipts

Name	Description
TP6	Standard	Download
TP7	Horizontal	Download

Refund Receipts

Name	Description
TR8	Horizontal	Download
TR9	Standard	Download

Project/Tasks

Name	Description
TP11	Project Outline	Download
TT10	Task	Download

Snippets

Here are some quick and easy snippets you can use in your templates/designs

Display payments table on an invoice

​<ninja>
    {% if invoices %}
    {% set invoice = invoices|first %}
        <div>
        <table>
        {% if invoice.payments is not empty  %}
        <tr><td>Date</td><td>Amount</td></tr>
        {% for payment in invoice.payments %}
        <tr>
            <td>{{ payment.date }}</td>
            <td>{{ payment.amount }}</td>
        </tr>

        {% endfor %}
        </table>
        {% endif %}

    {% endif %}
</ninja>

Introduction​

Getting Started​

Delivery Note Example​

Concepts​

Using blocks in templates​

Data Access​

Twig variables​

Invoice Ninja variables​

Allowed Tags​

Allowed Filters​

Allowed Functions​

Allowed Properties​

Allowed Methods​

Statements​

Object Json Definitions​

Invoice​

Payment​

Task​

Definitions​

Invoice / Quote / Credit / Purchase Order Definition​

Line items definition​

Tax map definition​

Payment definition​

Paymentables definition​

Task Definition​

Expense Definition​

Vendor Definition​

Time Log Definition​

User Definition​

Client Definition​

Location Definition​

Project Definition​

Sample Templates​

Statements​

Delivery Notes​

Payment Receipts​

Refund Receipts​

Project/Tasks​

Snippets​

Display payments table on an invoice​

Introduction

Getting Started

Delivery Note Example

Concepts

Using blocks in templates

Data Access

Twig variables

Invoice Ninja variables

Allowed Tags

Allowed Filters

Allowed Functions

Allowed Properties

Allowed Methods

Statements

Object Json Definitions

Invoice

Payment

Task

Definitions

Invoice / Quote / Credit / Purchase Order Definition

Line items definition

Tax map definition

Payment definition

Paymentables definition

Task Definition

Expense Definition

Vendor Definition

Time Log Definition

User Definition

Client Definition

Location Definition

Project Definition

Sample Templates

Statements

Delivery Notes

Payment Receipts

Refund Receipts

Project/Tasks

Snippets

Display payments table on an invoice
